Engineering Surveying & Dimensional Control — Geelong & Victoria
Millimetre accuracy. Proactive delivery. 20+ years of construction and industrial surveying experience.
When your project demands precision — whether you’re setting out a high-rise, installing mechanical equipment at an industrial facility, constructing a dam, or managing dimensional control on a major infrastructure corridor — the quality of your engineering surveying determines the quality of your outcome.
Storm Spatial’s engineering surveyors bring over 20 years of hands-on construction and industrial experience to every project. We work ahead of the site crew, manage spatial data proactively, and deliver the millimetre-accurate results that specialist contractors, engineers, and facility operators depend on — across Geelong, Melbourne, and throughout Victoria.
Storm Spatial’s engineering surveyors bring over 20 years of hands-on construction and industrial experience to every project. We work ahead of the site crew, manage spatial data proactively, and deliver the millimetre-accurate results that specialist contractors, engineers, and facility operators depend on — across Geelong, Melbourne, and throughout Victoria.
20+ Years Construction & Industrial Experience
Millimetre
Accuracy
Accuracy
REOC
Certified
Certified
Geelong-Based,
Victoria-Wide
Victoria-Wide
Engineering Surveying for Every Scale of Project — From Civil Construction to Industrial Facilities
Storm Spatial’s engineering surveyors have worked across the full spectrum of construction and industrial projects. Whatever the scale, the tolerance requirement, or the complexity of the site, we have the experience and equipment to deliver.
Oil & Gas and Industrial Facilities
Dimensional control, mechanical equipment installation surveys, structural steelwork alignment, pipeline setout, and as-built documentation for industrial plant and energy infrastructure.
Civil Contractors & Builders
Building setout, bulk earthworks, road and bridge construction, concrete and hold-down bolt setout, as-constructed surveys, and machine guidance.
Earthwork Operators & Plant Contractors
Machine guidance, bulk earthwork setout, cut-and-fill management, and end-of-month volumetric reporting.
Developers & Project Managers
Feature and level surveys, dimensional control from design to handover, and as-constructed documentation for regulatory compliance and client sign-off.
Major Infrastructure Projects
Major Infrastructure Projects — Road, rail, and bridge construction surveys, point cloud and laser scanning, settlement and movement monitoring, digital twin delivery, and infrastructure corridor dimensional control.
Specialist Contractors & Concreters
Structural and architectural design setout, concrete formwork control, hold-down bolt placement, and QA survey checks
Our Engineering Survey Services
Storm Spatial provides a comprehensive range of engineering surveying services across civil construction, infrastructure, and industrial projects. All work is delivered with survey-grade accuracy, integrating GPS, Robotic Total Station, and UAV technology.
Mechanical & Structural Setout
- Hold-down bolt and chem-set anchor setout — precisely positioned to manufacturer tolerances and engineering specifications before any mechanical installation begins.
- Base plate and bearing level surveys — precise level and flatness verification of base plates and bearing surfaces, ensuring mechanical equipment sits to design elevation and tolerance.
- Vertical bolt and anchor setout — accurate placement and alignment of vertical bolt patterns and anchor systems for structures, vessels, and rotating plant.
- Column plumbness and verticality surveys — checking and certifying structural columns, frames, and steelwork for plumbness and vertical alignment against design specifications.
- Structural connection and interface surveys — verifying the dimensional compatibility of structural connections, pre-fabricated interfaces, and modular assembly points before installation.
Feature & Level Surveys
Detailed feature and level surveys capturing existing site conditions, elevations, and infrastructure for design, planning, and construction purposes.
Monitoring — Digital Twin & Periodic Reporting
- Settlement and movement monitoring — periodic precision survey of structures, embankments, retaining walls, and infrastructure to detect and quantify ground movement, settlement, or deformation over time.
- Periodic DTM capture and change analysis — repeated terrain model surveys at defined intervals, with change detection analysis showing volumetric movement, erosion, or accumulation between epochs.
- Digital Twin delivery — combining survey-grade point cloud data, terrain models, and as-built documentation into a spatially accurate digital twin of your site or asset. The digital twin evolves with the project, providing a living record of the built environment that supports ongoing asset management, maintenance planning, and future development.
- Construction progress monitoring — scheduled aerial and ground surveys capturing site conditions at regular intervals, with comparative reporting showing progress against design intent and schedule.
- End-of-period reporting packages — structured volumetric, movement, and progress reports delivered at agreed intervals, formatted for project management, client reporting, or regulatory compliance requirements.
Bulk Earthwork Volumes & Reporting
Volumetric calculations, cut-and-fill management, and end-of-month progress reporting — combining UAV terrain modelling with traditional survey methods for accurate, defensible quantities.
As-Constructed Surveys
Rigorous as-built verification surveys confirming that completed work meets design intent and engineered tolerances — essential for handover, regulatory sign-off, and client documentation.
Point Cloud & Laser Scanning
- High-density 3D point cloud capture of structures, plant, vessels, pipelines, and built environments — all registered to a survey datum for dimensional accuracy and GIS integration.
- Precise as-built capture of complex industrial installations where traditional survey methods cannot reach — beams, structures, and pipework captured in full three-dimensional detail.
- Clash detection and dimensional verification — comparing point cloud data against design models to identify deviations, interferences, and areas requiring rectification before construction or commissioning.
- Structural deformation and distortion analysis — capturing the true shape of existing structures as a dimensional baseline for engineering assessment, refurbishment, or modification works.
- Deliverables include registered point cloud files (LAZ/E57), 2D extracted drawings, 3D mesh models, and sectional profiles — in formats compatible with AutoCAD, Revit, 12D, and third-party engineering software.
Construction Setout
Building setout, structural and architectural design setout, concrete and hold-down bolt placement, and bulk earthwork setout — delivered to the tolerances your design requires.
Periodic UAV Terrain Modelling
Regular drone terrain surveys to track construction progress, monitor earthwork volumes, and document site evolution over time.
Road, Rail & Bridge Construction
Survey support for road and pavement construction, rail corridor surveys, and bridge construction — from initial setout through to as-constructed documentation.

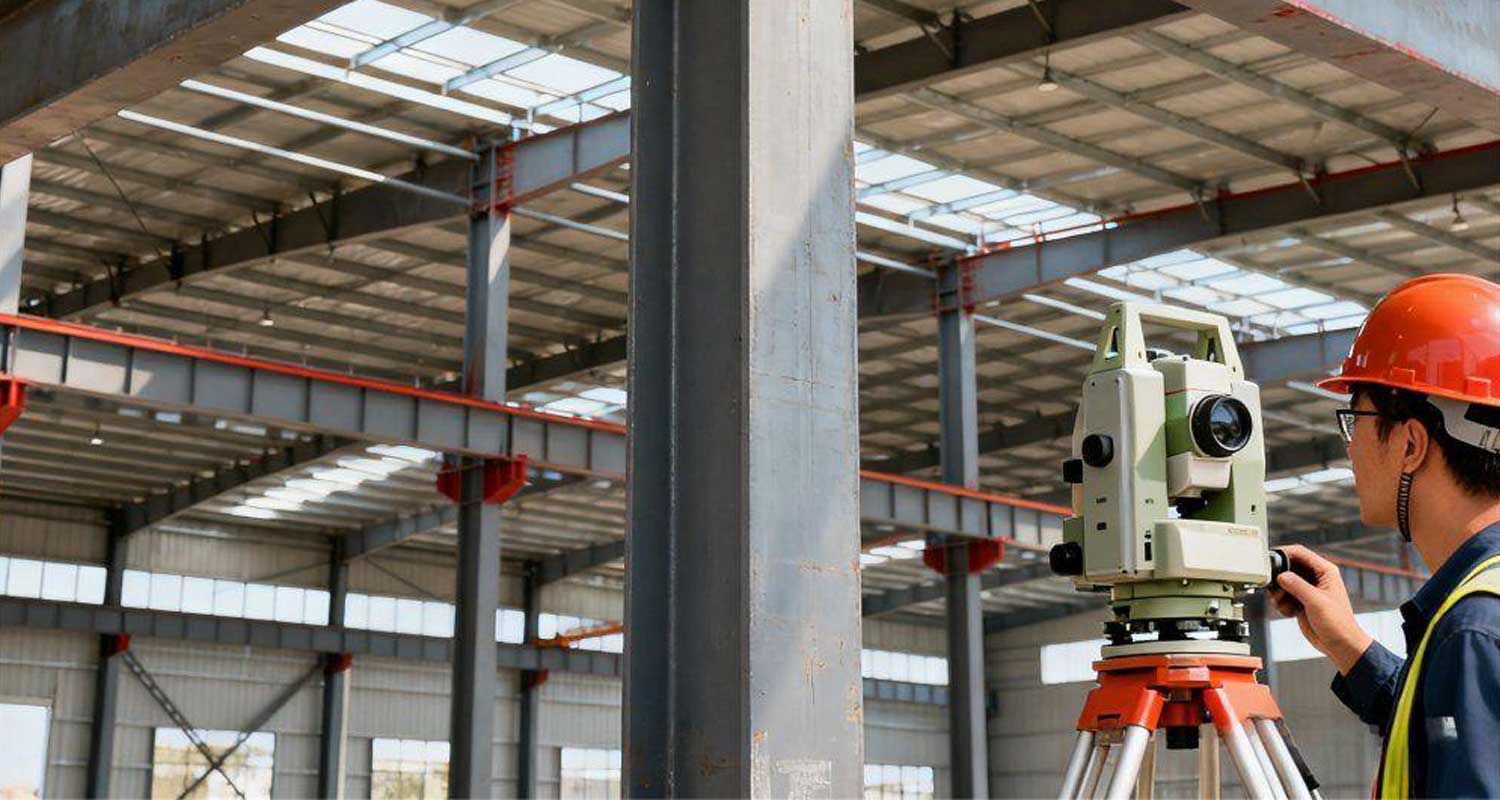

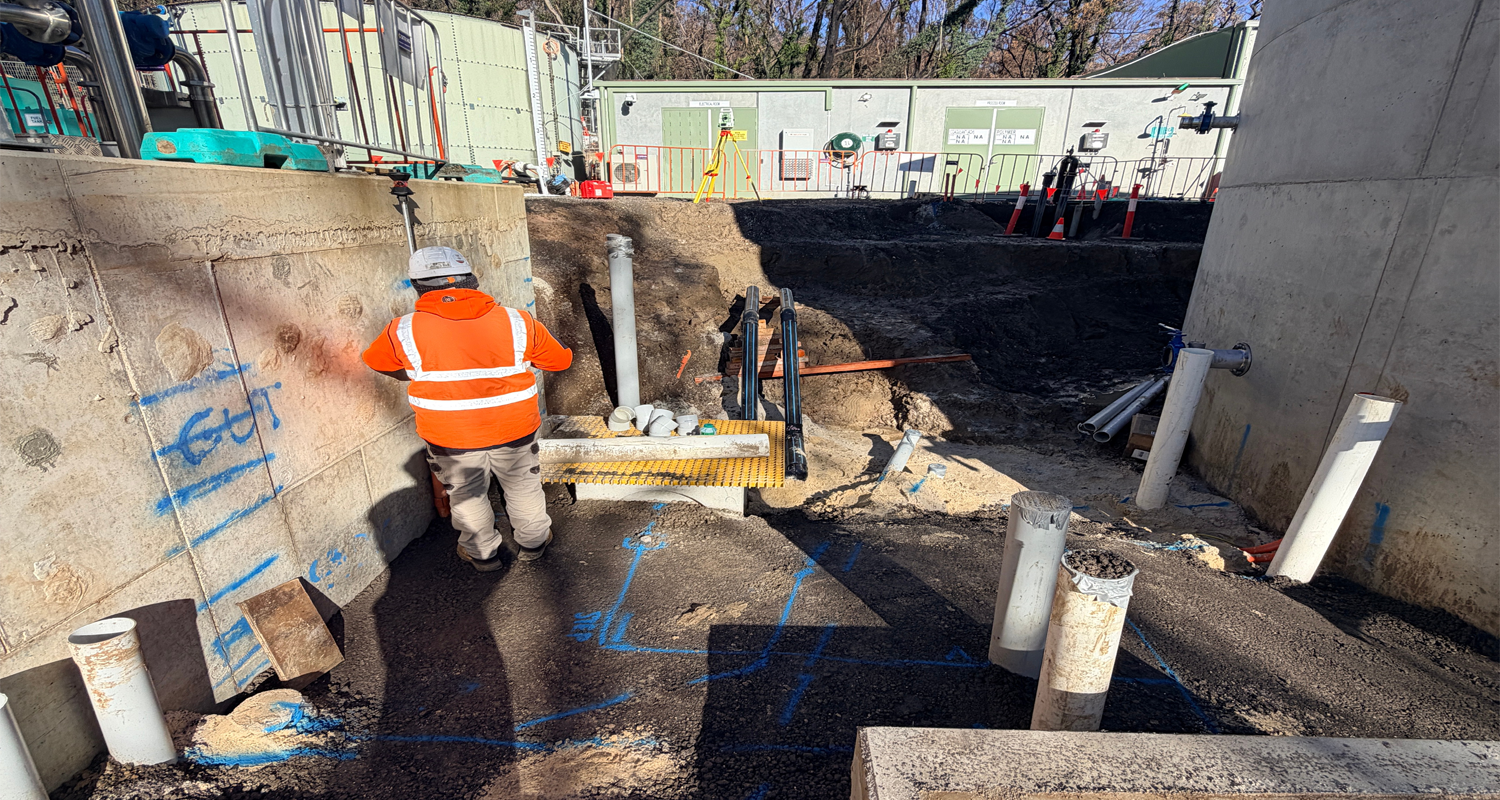

Dimensional Control & Mechanical Installation Surveying
Specialist survey support for industrial plant, mechanical equipment, and precision-critical construction.
In precision-critical environments — oil and gas facilities, industrial plant, mechanical installations, and major infrastructure — the tolerance for error is measured in millimetres. A single misalignment in a mechanical installation can cascade through commissioning, cause structural issues, or result in costly rectification after the fact.
Storm Spatial’s dimensional control and mechanical installation surveying service is built for exactly these environments. Our surveyors have the equipment, experience, and technical understanding to work to the tight tolerances that industrial and infrastructure projects demand — and to deliver results that your engineers, project managers, and commissioning teams can rely on.
Storm Spatial’s dimensional control and mechanical installation surveying service is built for exactly these environments. Our surveyors have the equipment, experience, and technical understanding to work to the tight tolerances that industrial and infrastructure projects demand — and to deliver results that your engineers, project managers, and commissioning teams can rely on.
WHAT DIMENSIONAL CONTROL COVERS
Mechanical Equipment Setting Out
Precise setting out of mechanical equipment, skids, vessels, and rotating machinery to design coordinates and elevation — to millimetre tolerances.
Pipeline & Piping Survey
Survey support for pipeline and piping installations — centreline, grade, and elevation control across both above-ground and buried pipeline infrastructure.
Structural Steelwork Alignment
Plumbness verification, column alignment, and structural steelwork dimensional control — ensuring fabricated elements arrive on site and install to engineering tolerances.
Settlement & Deformation Monitoring
Periodic precision monitoring of structures, plant, and infrastructure for settlement, deformation, or movement over time — with clear, documented reporting at each monitoring epoch.
Hold-Down Bolt & Anchor Setting Out
Precise placement of hold-down bolts and anchor systems to manufacturer and engineering specifications — a critical predecessor to any mechanical installation.
As-Built Documentation for Handover
Comprehensive as-built surveys of completed installations — confirming as-installed dimensions against design drawings for engineering sign-off, client handover, and regulatory compliance.
Pre-Fabrication & Pre-Installation Surveys
As-built surveys of pre-fabricated structures and components before delivery to site — confirming dimensional compliance and identifying any issues before installation.
Industrial Facility Surveys (Live Plant)
Survey work within live industrial facilities and active plant — working safely within the constraints of operational environments, shutdown windows, and permit-to-work systems.
Why This Matters for Oil & Gas, Energy & Major Infrastructure
Victoria’s infrastructure pipeline — including offshore wind port facilities, gas network maintenance and upgrades, hydrogen infrastructure, and major industrial developments — requires engineering survey partners with genuine dimensional control capability. Storm Spatial’s team has the precision equipment, technical depth, and site experience to deliver in these environments. If you’re a principal contractor, EPC firm, or facility operator with dimensional control or mechanical installation survey requirements across Victoria, we want to hear from you.
How We Work — Proactive, Precise, Ahead of Schedule
A good engineering surveyor doesn’t just respond to the site — they stay ahead of it. Storm Spatial’s approach is built around anticipating what the site crew needs next, resolving dimensional issues before they cause delays, and keeping the project moving.
1. Project Brief & Spatial Data Setup
Before we arrive on site, our Spatial Data Manager reviews your design drawings, identifies dimensional control requirements, and checks for any discrepancies between design intent and real-world conditions. This pre-site preparation means we arrive ready — not discovering issues at the face of the work.
2. On-Site Surveying — Ahead of the Crew
Our surveyors work ahead of your site crew at every stage — setting out before trades arrive, checking tolerances as work progresses, and flagging any as-built deviations before they compound into larger issues. We work closely with specialist contractors, concreters, plant operators, and supervisors, adapting to the pace and sequencing of your project.
3. QA Verification & As-Constructed Documentation
Throughout and at completion, we conduct QA survey checks confirming that completed work meets design tolerances and engineering specifications. Any deviations are identified and documented promptly, with clear reporting that your site supervisor, engineer, or project manager can act on. Final as-constructed surveys are delivered in your required format — DWG, DXF, PDF, or 12D.
Years Experience
Mm Accuracy
REOC Certified
Fully Insured
Why Engineers, Contractors & Industrial Operators Choose Storm Spatial
Millimetre Accuracy, Every Time
Our surveyors work to the tight tolerances that engineering and industrial projects demand — with Robotic Total Station and precision GPS equipment that delivers millimetre-accurate results in the field.
20+ Years of Construction Experience
We’ve worked alongside specialist contractors, builders, earthwork operators, concreters, and supervisors across every stage of construction — giving us a practical, field-level understanding that desk-based surveyors simply don’t have.
Proactive Problem-Solving
We stay ahead of the site crew, identify dimensional discrepancies early, and resolve issues before they cause delays or rework. Our background means we anticipate what’s coming — and act before it becomes a problem.
Specialist Dimensional Control Capability
From hold-down bolt setout to mechanical equipment installation and structural alignment verification, we bring specialist precision survey capability to projects where tolerances are tight and errors are costly.
Complete Spatial Data
From Setout to Digital Twin — Combining precision engineering surveying with point cloud scanning, aerial terrain modelling, and periodic monitoring, we deliver a complete spatial record of your project — from the first setout peg through to digital twin delivery and ongoing asset reporting.
Geelong-Based, Victoria-Wide
Based in Geelong, we mobilise rapidly across greater Melbourne, the Surf Coast, Western Victoria, and regional areas. For large or extended
Frequently Asked Questions
What is engineering surveying and how does it differ from land surveying?
Engineering surveying is the application of surveying techniques to support the design, construction, and management of engineered structures and infrastructure. Where land surveying is primarily concerned with property boundaries, title, and cadastral mapping, engineering surveying focuses on construction setout, dimensional control, as-built verification, and spatial data management throughout a project’s lifecycle. Engineering surveyors work directly on construction sites alongside builders, contractors, and engineers — their role is to ensure that what gets built matches what was designed, to the required tolerances.
What is dimensional control surveying?
Dimensional control is the process of verifying and managing the physical dimensions of structures, components, and installations against their design specifications — typically to millimetre tolerances. It is most commonly used in industrial plant construction, mechanical installations, structural steelwork fabrication and erection, and precision-critical civil works. Dimensional control surveys may include pre-fabrication checks, installation alignment verification, structural plumbness checks, and as-built confirmation surveys. In oil and gas, offshore, and major industrial projects, dimensional control is a formal engineering deliverable required at key project milestones.
What accuracy does engineering surveying achieve?
Modern engineering surveying using Robotic Total Stations achieves positional accuracies in the range of 1–3 millimetres under field conditions, with sub-millimetre precision achievable in controlled environments. The actual accuracy delivered depends on the instrument used, environmental conditions, the number and quality of control points, and the methodology applied. Storm Spatial uses precision Robotic Total Station equipment calibrated to manufacturer specifications, with all control established and verified to ensure the accuracy your project tolerances require.
What types of projects require dimensional control surveying?
Dimensional control is required on any project where the physical dimensions of installed elements must meet tight engineering tolerances. Common project types include: industrial plant and facility construction, oil and gas infrastructure, mechanical equipment and skid installations, structural steelwork fabrication and erection, bridge and major infrastructure construction, dam and water storage construction, and any project involving pre-fabricated components that must align precisely with in-situ elements. If your project has engineering drawings with tolerance specifications, dimensional control surveying is likely required.
Can you survey within live industrial facilities or active plant?
Yes. Storm Spatial’s team has experience working within live industrial facilities and active plant environments. We are familiar with the requirements of permit-to-work systems, site induction procedures, working within exclusion zones, and the operational constraints of active plant sites. If your project requires survey work within an operating facility — whether during a shutdown window or under live plant conditions — contact us to discuss your specific site requirements and we will confirm our capability and any additional accreditation needed.
What is an as-constructed survey and when is it required?
An as-constructed (as-built) survey is a survey completed after construction or installation to record the actual dimensions, positions, and elevations of completed works — and compare them against the design drawings. As-constructed surveys are required for: regulatory and council approvals, client and principal contractor handover documentation, infrastructure asset registers, confirming that engineering tolerances have been met, and providing a dimensional record for future maintenance or modification works. Storm Spatial delivers as-constructed surveys in your required format — DWG, DXF, PDF, 12D, or GIS.
Do you provide end-of-month volume reporting for earthworks?
Yes. Storm Spatial provides bulk earthwork volume calculations and end-of-month progress reporting, combining periodic UAV terrain modelling surveys with traditional ground survey methods where required. Our volumetric reporting integrates with standard earthworks payment and contract administration processes, providing defensible, survey-grade quantities that both client and contractor can rely on. Reports are delivered in PDF and digital formats, with full supporting data available on request.
What areas of Victoria do you service for engineering surveying?
Storm Spatial is based in Geelong and provides engineering surveying services across Victoria, including greater Melbourne, the Surf Coast, Bellarine Peninsula, Western Victoria, and regional areas statewide. For major or extended projects requiring embedded survey support, we can discuss on-site or near-site arrangements. Contact us to discuss your project location and programme.
Ready to Bring Precision Surveying to Your Project?
Whether you need construction setout for a civil project, dimensional control for a mechanical installation, or engineering surveying support for a major infrastructure programme — Storm Spatial’s team is ready to deliver millimetre-accurate results across Geelong, Melbourne, and Victoria.
Get in touch today for a fast, no-obligation quote. Tell us about your project and we’ll confirm how we can help.
Get in touch today for a fast, no-obligation quote. Tell us about your project and we’ll confirm how we can help.
